Camera systems for mining machines

Kocchi’s camera systems for mining machinery provide the best vision solution for any machine while also increasing safety. Working in the mining industry can be extremely difficult for mining vehicles and miners, so it is critical that machinery be both durable and profitable. It’s important to have a clear picture of work processes and blind spots in order to accomplish this. We create high-quality, professional vision solutions for any situation in order to improve safety, performance, and comfort.

We work closely with OEMs all over the world to create and produce aftermarket-specific standard and custom camera vision solutions. Our camera monitor systems are designed and manufactured to the highest standards of quality. We follow international automotive standards like IATF 16949. Thanks to their robust and compact design, our products are also able to withstand extremely low and high temperatures. What’s more, monitor are cameras both dust and waterproof (IP68 and IP69K).

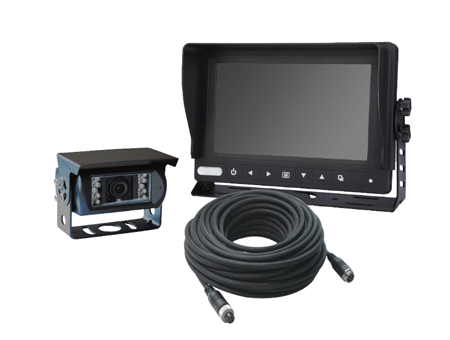

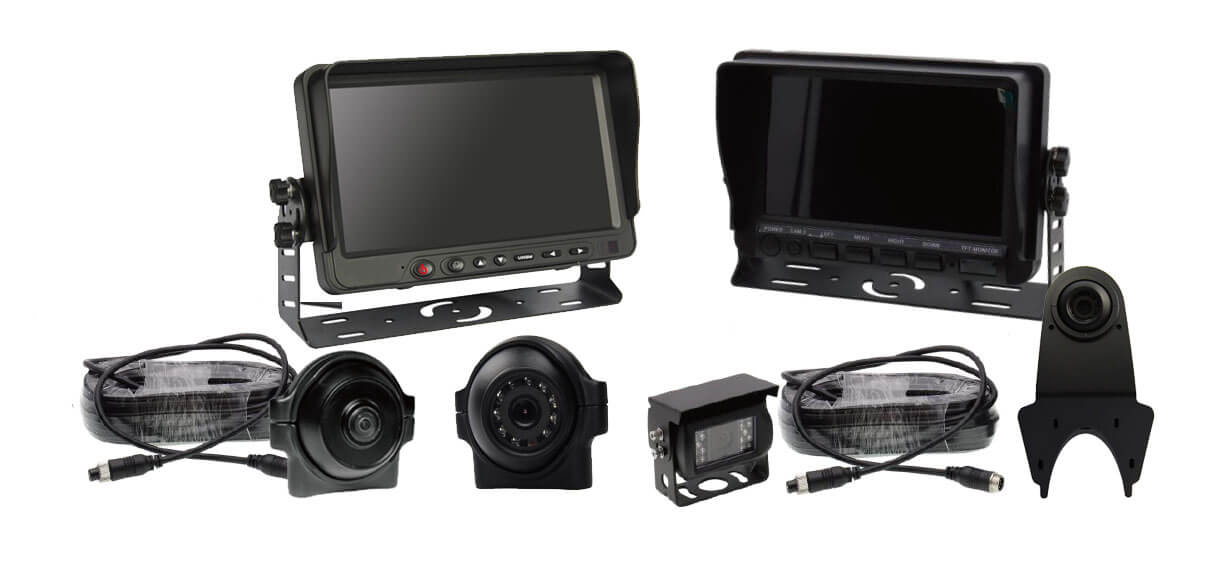

Wired Camera System

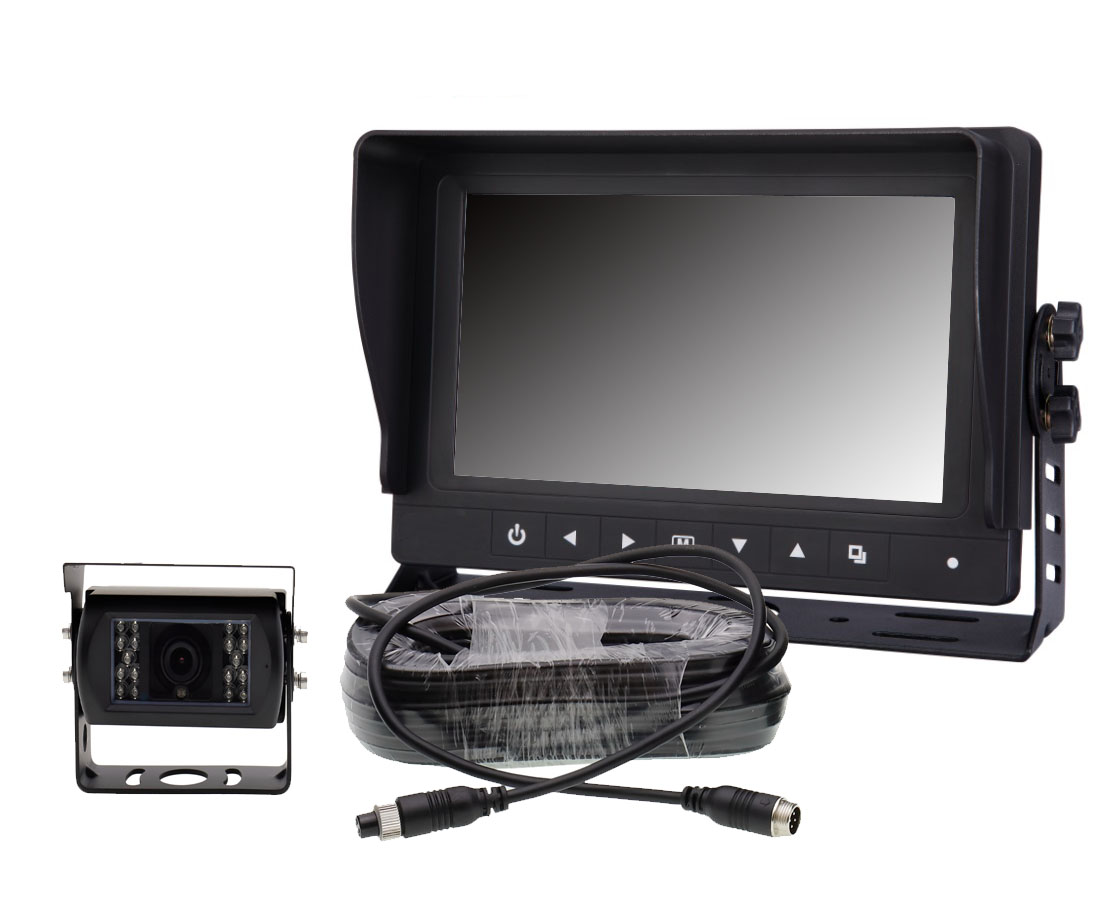

Rear View

You would obtain a clearer view of the working area to the rear of the mining machine and drive more comfortably while reversing with an Kocchi’s Rear View camera mounted on your machine. When reverse gear is engaged, the display in the cab automatically turns to the rear view. You can also choose whether to operate the systemn continuously or manually. Any mining machine can be equipped with the camera system.

Side View

The driver’s view to the side of the machine is restricted when maneuvering and turning. The side view camera allows you to see the area directly adjacent to the rig. Each maneuver is made safer, more effective, and more comfortable thanks to the camera system, which ensures that obstacles and people are still visible. This side view camera can also be used in conjunction with our rear-view camera to improve visibility even further.

Front View

You would have a good picture of what’s going on in front of the mining machine thanks to our front mounted view camera. A wheel loader’s bucket, for example, blocks your vision, making it more difficult to see the area ahead of the machine. The front view camera sees through these obstructions, giving you a wider view of the machine’s surroundings and helping you to operate more effectively and avoid collisions.

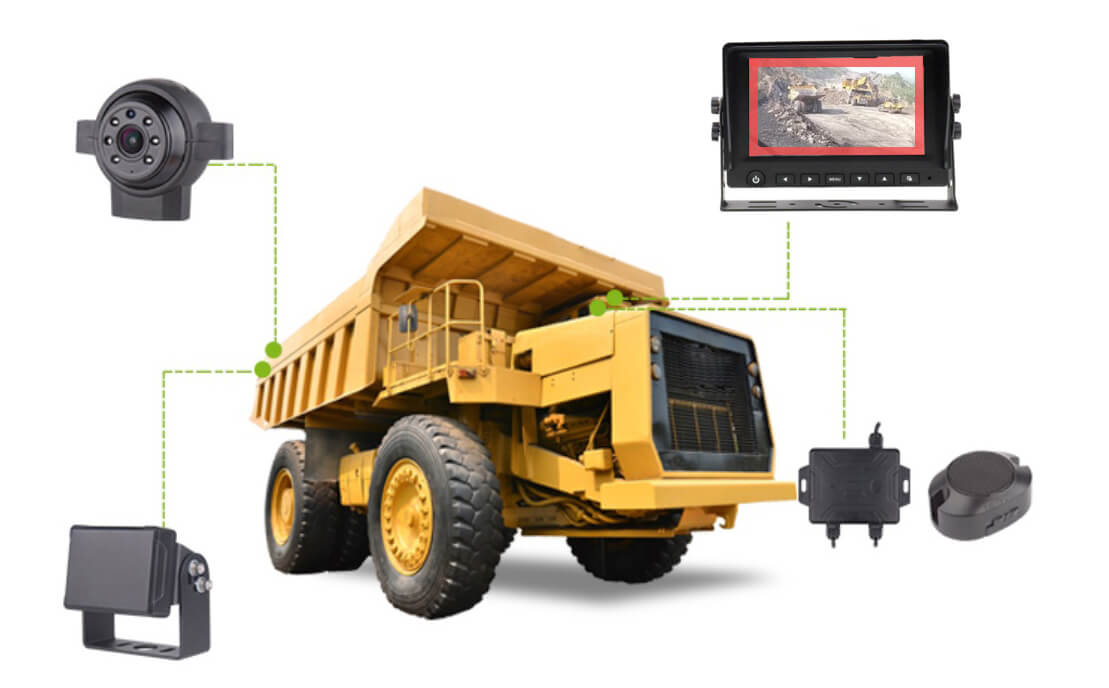

Collision avoidance technology integrated with Millimeter radar & cameras

With mining trucks measuring over 40’ (12.5m) long, 25’ (7.5m) wide and 18’ (5.5m) high, the blind zones on mining equipment are potentially immense—some vehicles can even have full 360° blind zones. Kocchi’s provides solutions that utilize a combination of the latest millimeter radar and camera vision in order to help eliminate costly collisions and vehicle downtime. Detection Range: 0.1~30m.

Custom Vision Solutions

In addition to the standard vision solutions described above, Kocchi’s camera monitor systems can be combined or modified in a variety of ways. For more information about our custom solutions, contact our specialists.
