Model: 772S

AHD 7″ Digital LCD Heavy Duty Vehicle Monitor

Quick Overview

Heavy Duty Digital Hi-Res color panel, 2-4 camera and trigger inputs. Supports High Definition AHD cameras. DC11-32V, reverse polarity protected, voltage spike and surge protected.


This monitor is hard wearing and vibration-rated. Perfect for larger and heavy duty vehicles like refuse trucks, buses and RVs. It comes with a wide range of mounting options and can be mounted upside down.

It has two/three video inputs version via the cabling loom, which supports AHD vehicle camera and standard CVBS cameras. The cabling loom inputs also have a 12V power output which can power a corresponding 12V camera.

772S AHD Rear View Monitors

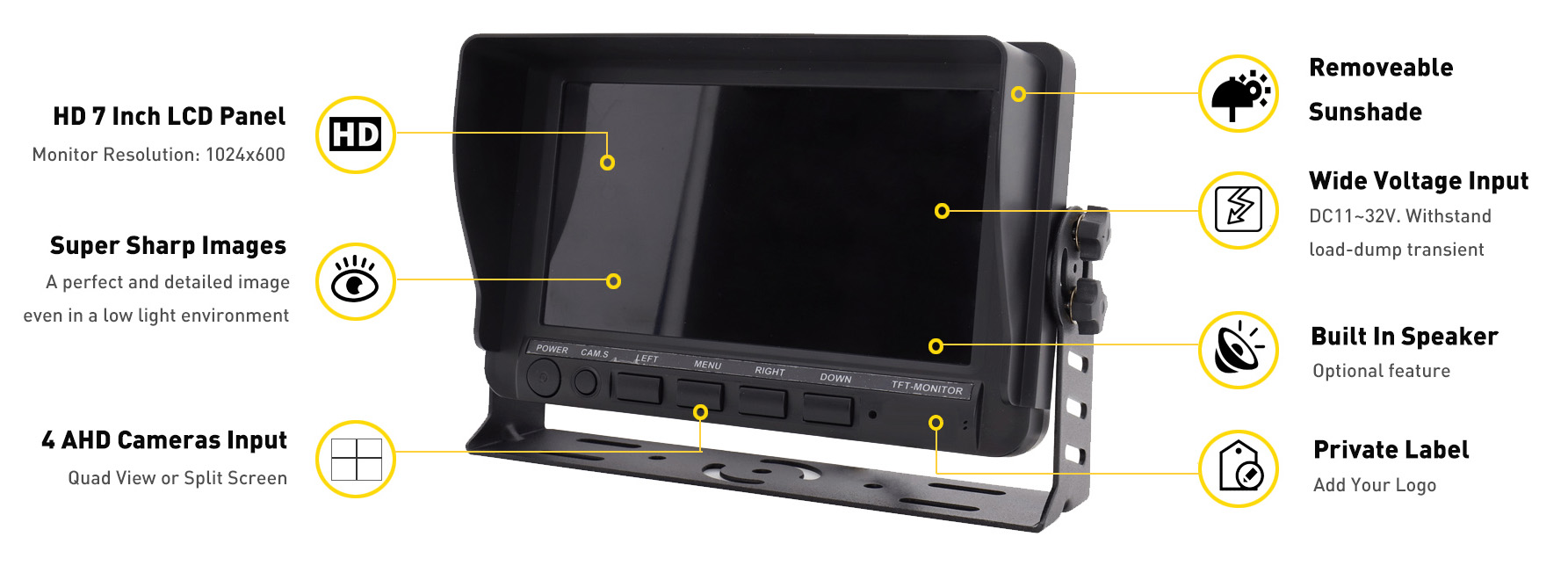

Supports High Definition Formats – AHD

772S vehicle monitor supports CVBS, AHD 720p and AHD 1080p high definition formats cameras. It is fully compatible with all Kocchi’s analog and AHD cameras.

Wide Dynamic Input Voltage Range

Features well designed DC circuitry primarily designed for vehicle systems. A wide 11V-32V input range to handle voltage drops and spikes. Each camera output has smoothed 12V supply for perfect camera operation.

Wide Range of Industries

This monitor can be used across a wide range of industries and applications. These include manufacturing, engineering, mining, construction, forestry, agricultural, trucking plus many more.


  • 7″ monitor

  • wiring loom

  • dash mount

  • infrared remote control

  • U-Bracket (great for dash and overhead mounting)

  • flush mount kit

  • sun visor

  • manual

  • 1 x 4 PIN lockable cable adaptor

PET Expandable Sleeve / Power Video Cable

Power video cable for camera monitor systems to connect monitors and cameras, 4-pin female to 4 pin airline aviation male extension cable, 10 meters(15M/20M/30M), φ5

  • Internal power supply ground lines are 24 # single wire, the audio cable is 26 # Single wire

  • Internal video cable should be a single braid shield wire or RG-179-75 braid coaxial wire.

  • Colors of all cables should be subject to the drawing paper.

  • Ambient temperature: -20 ℃ ~ +80 ℃

  • Inner resistance of cable: positive/negative wire≤ 2 Ohm, audio≤3Ohm, video≤ 3 Ohm

Alternative models available:

Cab5 – 5-meter cable
Cab8 – 18-metre cable
Cab10 – 15-meter cable
Cab12 – 20-metre cable
Cab15 – 25-metre cable
Cab30 – 30-metre cable
