Model: M175

7″ Digital LCD 4 Channel Vehicle Monitor | Touch Screen

Quick Overview

7″ Heavy Duty Digital Hi-Res panel, Quad views, 4 camera and trigger inputs.

Supports AHD and standard CVBS cameras. Touch screen design for ultimate usability ease.


The M175 vehicle rear view monitor can connect and view up to 4 cameras. It features a split screen which allows you to view multiple cameras at once. By utilizing high grade components, this display is perfect for industrial, in-car rear view applications or any other applications where a small, durable, environmentally rugged display is required.


Touch Screen

The display features a touch screen for ultimate usability ease. Settings can be controlled with the buttons or the touch screen.


Fully Programmable

Everything from screen display modes to trigger priorities can be programmed. Triggers allow the electrical selection of a camera depending on the vehicle mode or status. If multiple triggers are activated the priority can be set. The autoscan feature allows automatic cycling of cameras and the duty cycle can be adjusted. Reversing grid can be turned on and off.

  • automatic camera switching duty cycle

  • trigger priority

  • choose menu language(up to 12 languages)

  • picture modes

  • video output mode

Wide Range of Industries

This monitor can be used across a wide range of industries and applications. These include manufacturing, engineering, mining, construction, forestry, agricultural, trucking plus many more.

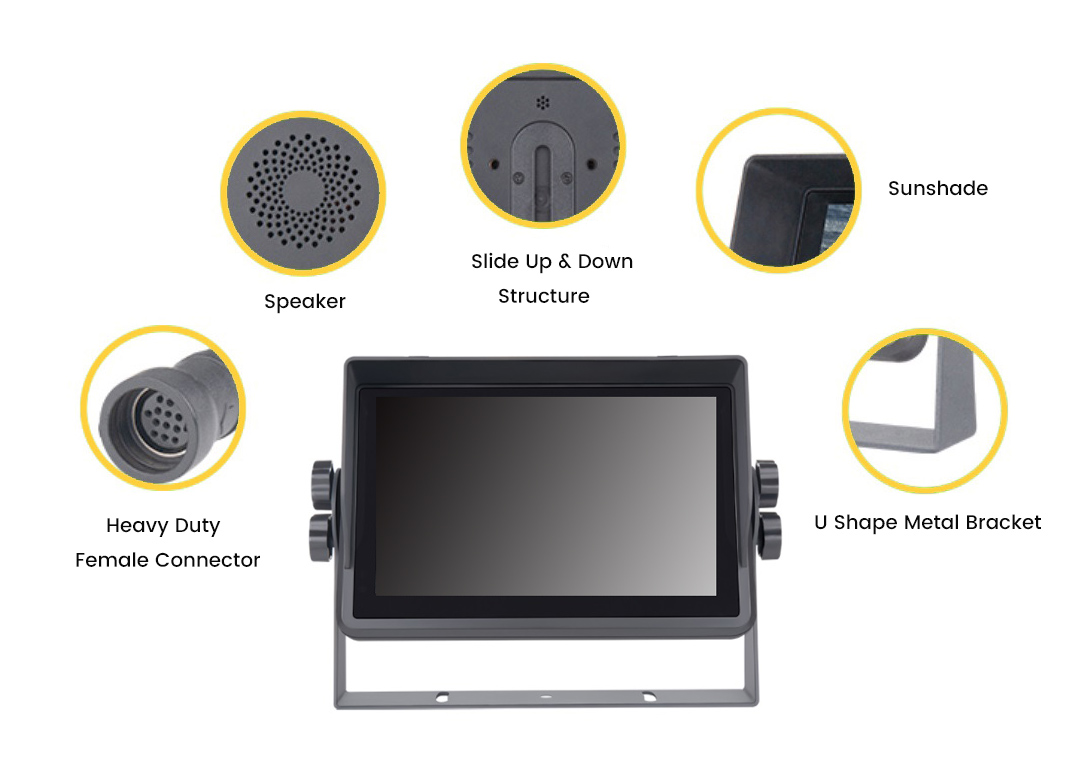

  • 7″ touch screen monitor

  • wiring loom

  • dash mount

  • infrared remote control

  • U-Bracket (great for dash and overhead mounting)

  • flush mount kit

  • sun visor

  • manual

  • 1 x Lockable cable adaptor

PET Expandable Sleeve / Power Video Cable

Power video cable for camera monitor systems to connect monitors and cameras, 4-pin female to 4 pin airline aviation male extension cable, 10 meters(15M/20M/30M), φ5

  • Internal power supply ground lines are 24 # single wire, the audio cable is 26 # Single wire

  • Internal video cable should be a single braid shield wire or RG-179-75 braid coaxial wire.

  • Colors of all cables should be subject to the drawing paper.

  • Ambient temperature: -20 ℃ ~ +80 ℃

  • Inner resistance of cable: positive/negative wire≤ 2 Ohm, audio≤3Ohm, video≤ 3 Ohm

Alternative models available:

Cab5 – 5-meter cable
Cab8 – 18-metre cable
Cab10 – 15-meter cable
Cab12 – 20-metre cable
Cab15 – 25-metre cable
Cab30 – 30-metre cable
